Residential Wall Systems
Primary AAC walling for efficient low-rise housing and subdivision projects.
01 / 08CLICK / ARROW / SWIPE SHOWCASE
AAC PRODUCTS / MHE GROUP
AAC Product Catalog
01 STANDARD BLOCKSREQUEST DATASHEET View AAC Standard Blocks details

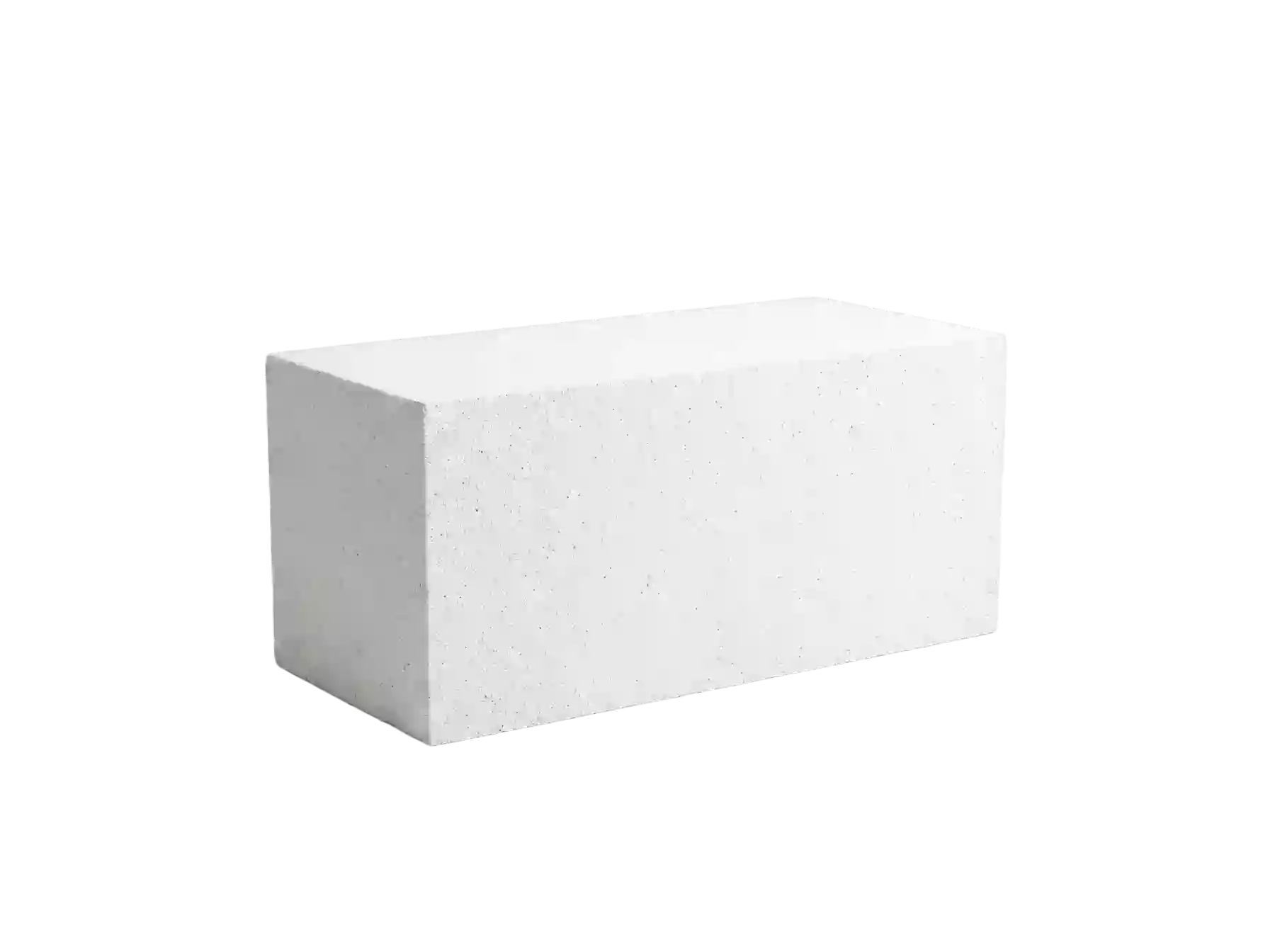

AAC Standard Blocks
Primary Walling System
AAC standard blocks form the primary walling unit for coordinated AAC construction. They combine low weight, dimensional consistency, fire-resistant mineral composition, and thermal performance for wall assemblies that still require project-specific engineering and code review.
AC4 / AC6Strength Class
0.086W/m·KThermal Conductivity
300–800kg/m³Density Range
Application Scenarios
AAC Standard Blocks in Project Use
Local product imagery and system-use references for product selection conversations before final engineering review.
Commercial Partitions
Lightweight wall modules for offices, retail, schools, and mixed-use developments.

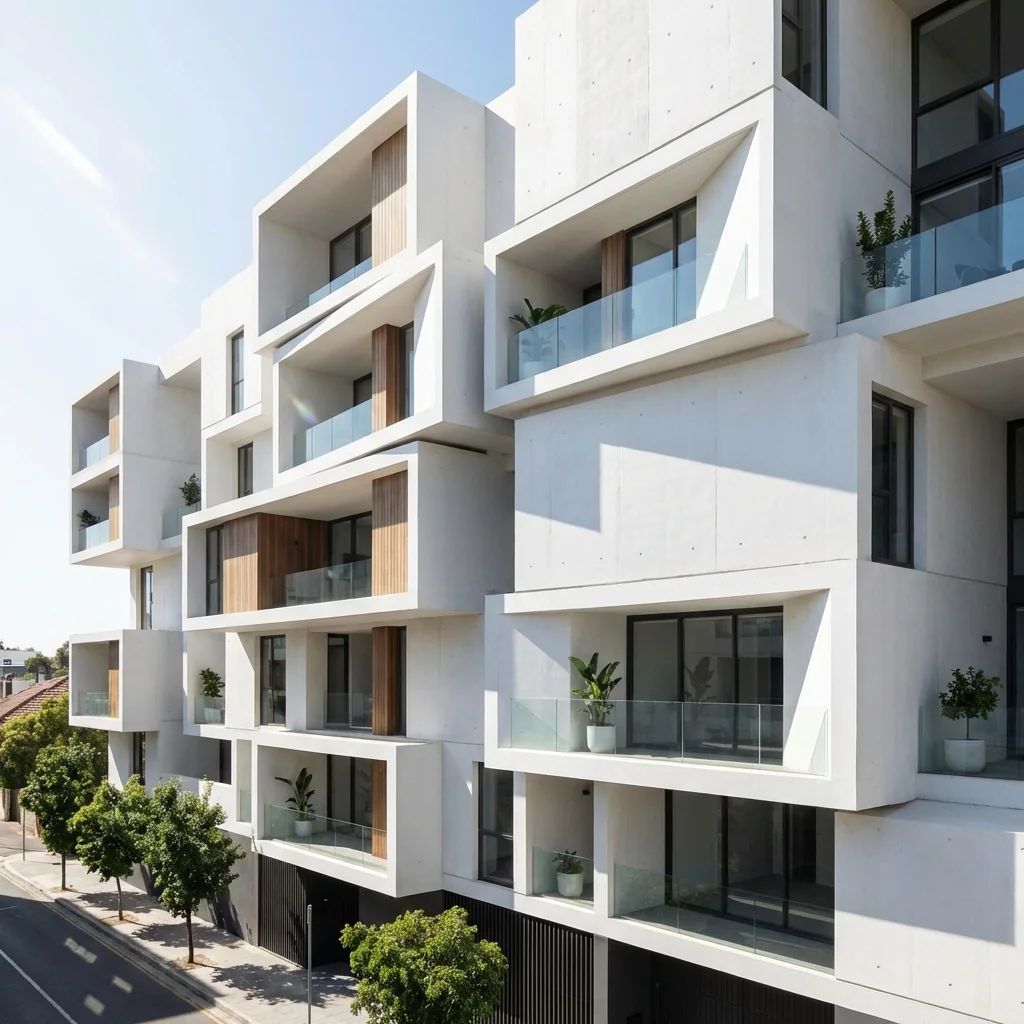

Architectural Facade Zones
Coordinated exterior wall assemblies where AAC thermal mass and flatness support envelope planning.
01
Technical Specification
| Fire classification | Class A1 non-combustible material classification |
|---|---|
| Typical use | Load-bearing walls, partitions, exterior AAC wall systems |
| Documentation note | LEED, ASTM, and other compliance references require current product documentation. |
02

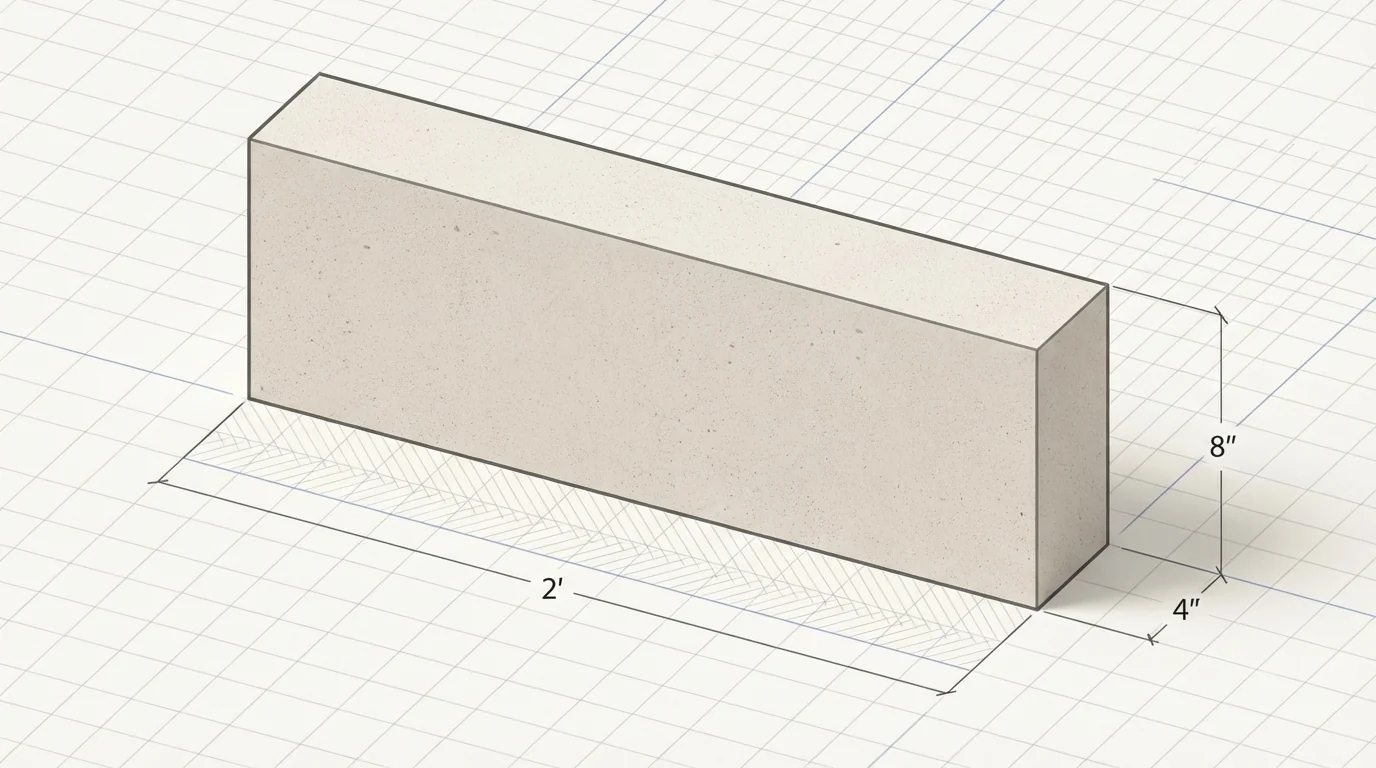

Available Sizes / Codes
| Code | Product size | Metric reference |
|---|---|---|
| 04824 | 4 in × 8 in × 24 in | 100 × 200 × 608 mm |
| 06824 | 6 in × 8 in × 24 in | 150 × 200 × 608 mm |
| 08824 | 8 in × 8 in × 24 in | 200 × 200 × 608 mm |
| 10824 | 10 in × 8 in × 24 in | 240 × 200 × 608 mm |
| 12824 | 12 in × 8 in × 24 in | 300 × 200 × 608 mm |
03
Compliance & Certifications
LEED COMPLIANT
Supports sustainable project documentation when credits are verified.
ASTM E136
Non-combustible material reference for mineral AAC systems.
ASTM C1693
AAC masonry unit reference for current specification review.
TRUE ZERO WASTE
Resource-efficient material planning subject to current documentation.
PRODUCT ADVANTAGES
- AC4 / AC6 strength-class planning
- Class A1 fire-resistant mineral material
- Low thermal conductivity
- Lightweight cutting and handling
SPECIFICATION NOTE
Final wall design, strength class, fire rating, and code compliance must be confirmed for the project location and design basis.PERFORMANCE OVERVIEW
The AAC Advantages
Built for documented performance, safety, and sustainability.01
Fire-Resistant Material Planning
AAC mineral composition can support fire-resistant assemblies when ratings are documented by tested assembly and project-specific review.
02
High Thermal Insulation Performance
AAC cellular structure supports low thermal conductivity values and energy-focused wall planning with proper documentation.
03
Acoustic Comfort Support
AAC wall systems can contribute to acoustic separation when wall build-up, finishes, and project details are coordinated.
04
Lightweight Structural Efficiency
AAC’s low self-weight can reduce mass compared with heavier wall systems, subject to structural design.
05
Dimensionally Precise & Easy to Work
AAC units can be cut, shaped, and coordinated efficiently by trained installation teams.
06
Accelerated Construction Planning
Large-format units and panelized AAC systems can support faster installation workflows where site planning is aligned.
07
Sustainable Material Strategy
AAC supports resource-efficient wall planning and sustainability discussions when documentation is verified.
08
Mould & Pest Resistance Context
Inorganic mineral composition supports resistance discussions, while moisture control remains project-specific.
09
Seismic Mass Reduction
Lower self-weight can reduce seismic mass compared with heavier systems, subject to engineering review.
COMPLETE PRODUCT RANGE
AAC Product
System
MHE Group supplies AAC standard blocks, U-blocks, cored blocks, lintels, slab panels, roof panels, vertical wall panels, and horizontal cladding panels through qualified production and logistics networks, with technical review before final specification.
8MAIN PRODUCT GROUPSTECHSUPPORTEXPORTPLANNING
Request product specifications, datasheets, supply availability, and technical review directly from the MHE Group team. Final product selection should be confirmed with current documentation and project-specific review.
REQUEST PRODUCT DETAILS →
